Swarm: Per-Item DAG Dispatch

A swarm runs one work agent per plan item, in parallel, on the same issue. Each agent gets its own git worktree and slot branch. The dispatcher uses the plan’s blocks edges as a DAG: an item becomes dispatchable the moment every blocking parent has merged or completed, not when its wave does.

When to Use a Swarm

A swarm fits when an issue’s xBRIEF plan splits into several items that can be implemented independently. If the plan is one linear sequence, a single work agent is faster — there is nothing to parallelize. Use a swarm when:

The plan has 3+ items with parallel branches in the DAG.
Items touch disjoint files (or you have planned files_scope so the dispatcher can serialize the overlapping ones).
You want a synthesis step at convergence points to brief the downstream work agent.

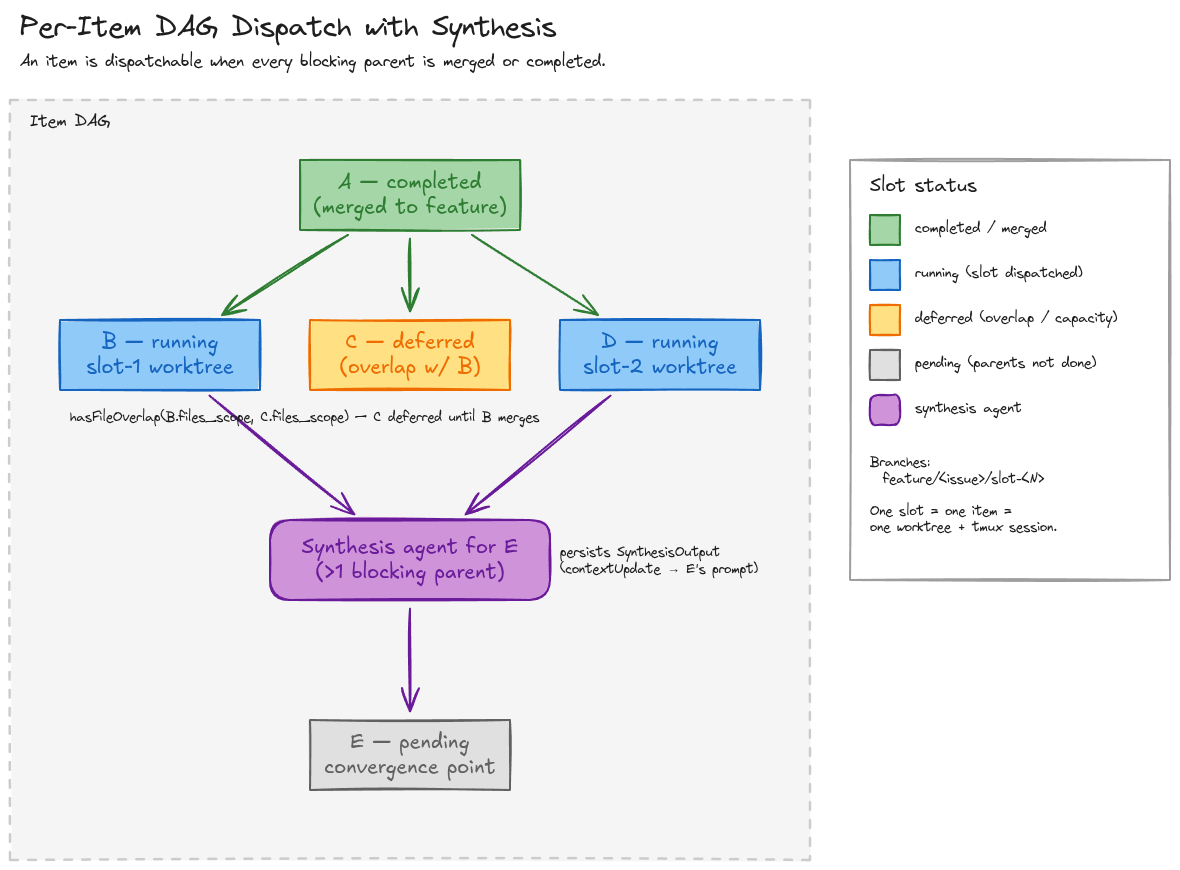

Mental Model

Items A, B, C, D, E are xBRIEF items wired by blocks edges. A has merged into the feature branch. B and D are running in slots 1 and 2. C is ready, but its files_scope overlaps B’s, so the dispatcher defers it. E has two blocking parents (B and D) — a synthesis agent runs at the convergence point, writes a SynthesisOutput, and the E work-agent reads that context block from its prompt.

Surface	Single-agent (default)	Swarm slot
Branch	`feature/<issue>`	`feature/<issue>/slot-<N>`
Worktree	`workspaces/feature-<issue>/`	per-slot worktree
tmux session	`agent-<issue>`	per-slot session
Plan visibility	Full plan	Active-slice (bounded) prompt

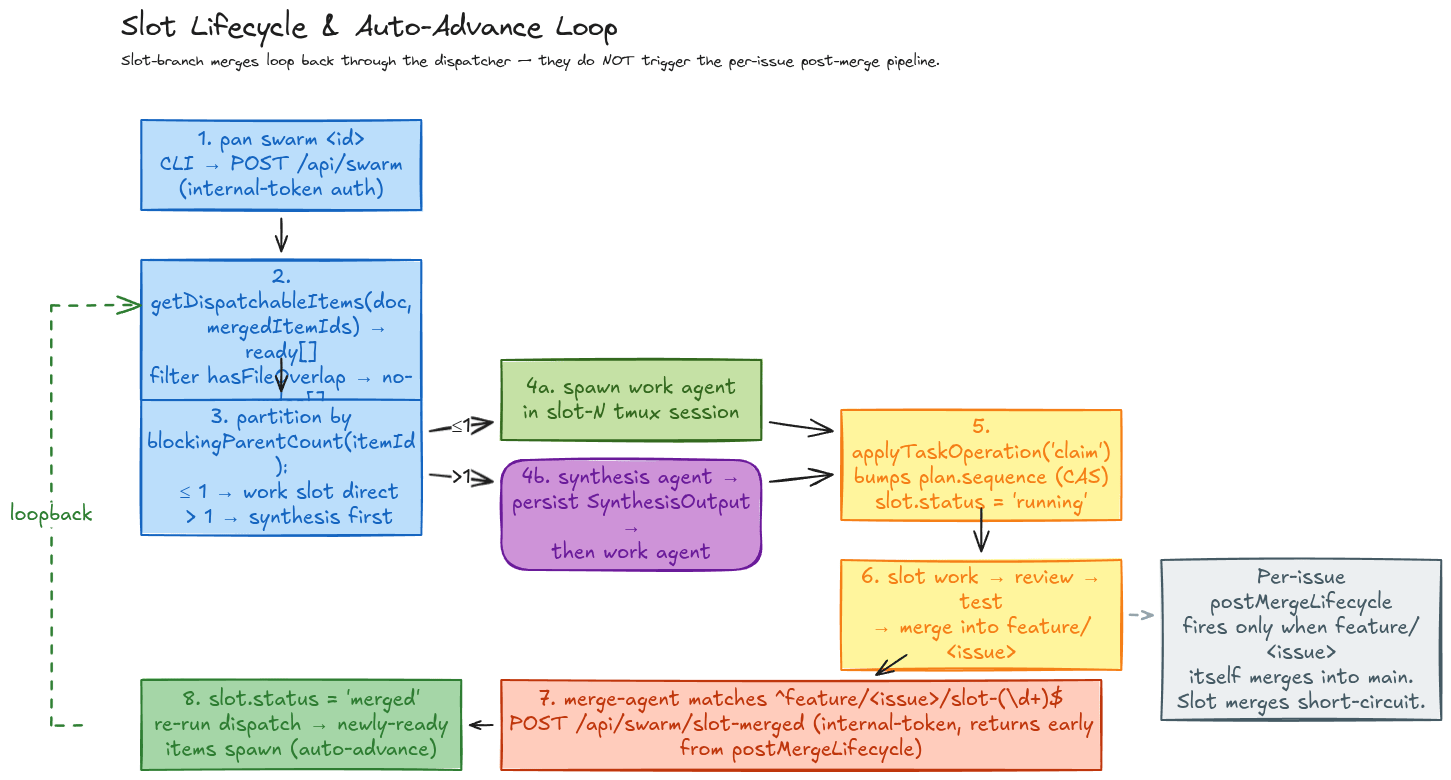

Slot Lifecycle

Every slot-branch merge fires /api/swarm/slot-merged. The route marks the slot merged, re-runs getDispatchableItems, and dispatches any newly-ready items (subject to capacity and file-overlap rules). The per-issue postMergeLifecycle only fires when feature/<issue> itself merges into main — slot merges return early. A slot whose status is 'failed' does not unblock its dependents. Each running slot is a registered work agent, so the dashboard’s Agents page surfaces every slot in flight alongside its model, runtime, and last activity — the same place you watch any single-agent run. The metric strip (Running, Stuck, Cost 24h, Tokens 24h, Queue) lets you confirm at a glance how many slots a swarm currently occupies.

CLI

pan swarm <id>                       # Spawn dispatchable items now
pan swarm <id> --dry-run             # Print dispatch plan; no spawns
pan swarm <id> --max-slots <n>       # Cap concurrency
pan swarm <id> --model <model>       # Override slot-agent model
pan swarm <id> --auto-advance        # Auto-dispatch as slots merge
pan swarm <id> --no-auto-advance     # Manual mode; explicit per wave

Inspect and Mutate Items

The plan document is the single mutation authority for item status. Every mutation bumps plan.sequence (compare-and-set).

pan swarm <id> --task next                              # List dispatchable items
pan swarm <id> --task show   --item <itemId>            # Show one item
pan swarm <id> --task claim  --item <itemId>            # Mark running
pan swarm <id> --task done   --item <itemId>            # Mark completed
pan swarm <id> --task block  --item <itemId> --reason "<text>"
pan swarm <id> --task unblock --item <itemId>
pan swarm <id> --task cancel --item <itemId>

Pass --sequence <n> to enforce CAS. A mismatch raises xBRIEF sequence conflict and the write is rejected.

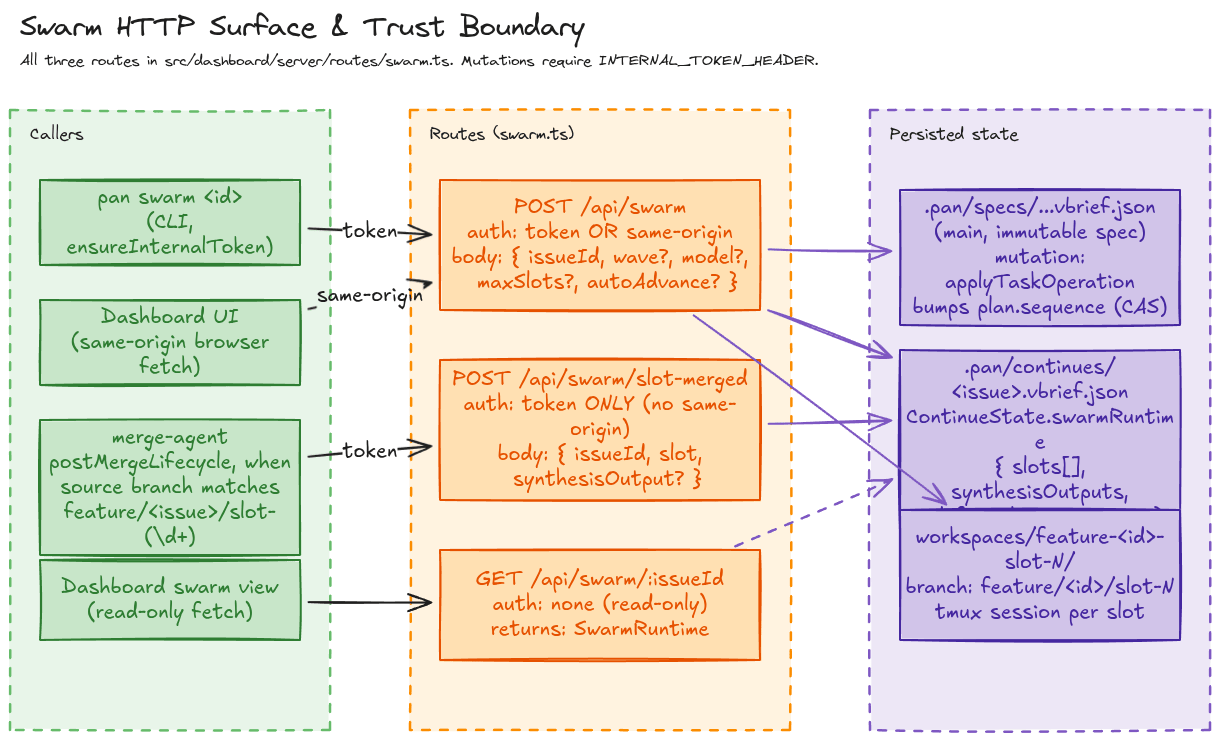

HTTP Surface

The two mutating routes require INTERNAL_TOKEN_HEADER. POST /api/swarm additionally accepts same-origin dashboard requests. POST /api/swarm/slot-merged is token-only — the merge-agent is the only legitimate caller.

Route	Auth	Purpose
`POST /api/swarm`	token or same-origin	Dispatch one or more slots
`POST /api/swarm/slot-merged`	token only	Loopback when a slot branch merges
`GET /api/swarm/:issueId`	none (read-only)	Dashboard swarm view

Plan Authoring: `files_scope` and Synthesis

Two fields on XBriefItem.metadata control swarm behavior.

Field	Purpose
`files_scope: string[]`	Globs (`*`, ``, `?`) of files this item touches. Used by `hasFileOverlap()` to serialize file-conflicting items. Items without a scope are treated as non-overlapping.
`requiresSynthesis: boolean`	Auto-derived during planning by `deriveSynthesisMetadata()`. Set on any item with >1 blocking parent. Do not hand-edit.

Plans that omit files_scope will still run — but every parallel pair is treated as non-overlapping, so two slots could race the same file. Author files_scope whenever items can plausibly touch the same code.

Runtime State

Swarm runtime state lives in <projectRoot>/.pan/continues/<issue>.xbrief.json under ContinueState.swarmRuntime. The old PAN-970 sidecar (~/.overdeck/swarms/<id>.json) is gone.

interface SwarmRuntime {
  model: string;
  currentWave?: number;
  totalWaves?: number;
  autoAdvance?: boolean;
  deferred?: { itemId: string; itemTitle: string }[];
  slots: SwarmSlotRuntime[];
  synthesisOutputs: Record<string, SynthesisOutput>;
  createdAt: string;
  updatedAt: string;
}

Watching a Swarm in the Pipeline

A swarm is still one issue moving through the pipeline — the parallelism is internal to its work phase. The Pipeline page groups every issue by phase (Ship / Review / Verifying) under a metric strip (Active issues, Work running, Review queue, Ship, Spend), with a live activity feed on the right. Once a swarm’s slots merge up into feature/<issue> and the issue advances, you track its progress here just like any other issue.

Convoys — multi-agent code review (different orchestration pattern).
Cloister — model routing, stuck detection, specialist handoffs.
Engineering reference: docs/SWARM.md — full library API, route bodies, sequence-number rules.
